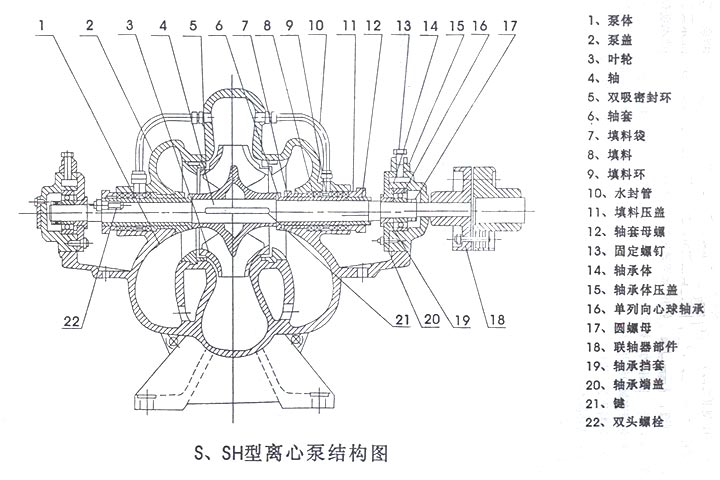

一、结构图

二、用途

  S、SH型泵是单级双吸水平中开式离心泵,供输送清水及物理化学性质类似于水的液体。温度不得超过80°C,适合于工厂、矿山、城市、电站的给排水,农田灌溉排污和各种水利工程。

三、性能范围

  进口直径:150-600mm
  流 量:133-317m3/h
  扬 程:10-125m
  转 速:2900r/min、1450r/min、970r/min
  配用功率:18.5-850Kw

四、型号意义

  10SH-13A
  10---吸入口直径被25除(即该泵吸水口直径为250mm)
  S、SH----双吸的单级卧式离心清水泵
  13----比转数被10除(即该泵的比转数为130)
  A----表示该泵换了不同的外径的叶轮

五、性能参数


型号流量 Q总扬程转速功率 N(Kw)效率必须汽叶轮泵质量
HNη蚀余量直径kg
m 3 /HL/s(m)(r/min)轴功率电机功率(    %)(m)mm
6SH-61263585295041.45570.53252165
150S78160457846.972.53.6

200557054.270.54.4
6SH-6A112316729503045682.7228165
150S78A144406333.8723.5

180505538.5704
6SH-913036.152295025.63772.53.5201155
150S5016044.55028.277.54

180504432.9754.5
6SH-9A111.63144.8295018.530723186155
150S50A144404020.9753.6

180503524.5704.5
8SH-621660108295087.711072.54.2282309
200S95280789594.413277.75.5

342958488.6
77.56.3
8SH-9216606929505575754.9238.5242
200S632807862.559.980.56.2

35197.55066.971.56.8
8SH-9A1805054.529504155674.5220241
200S63A270704648.3765.8

3249037.551726.6
8SH-132166048295034.945795202195
200S42280784239.2826.5

342953542.4777
8SH-13A1985543295030.537765.8196195
200S42A270753633.1806.4

310863134.4766.8
10SH-6360100711450100.2132702.5462528
250S6548613565.1112.676.23.1

61216057119.3753.6
10SH-6A3429561145083110702.4433528
250S65A4681305491.8753

54015050101733.5
10SH-936010042.5145055.675752.8367428
250S3948613538.563.281.43.4

5761603465.9813.8
10SH-9A3249035.5145042.355752.5338428
250S39A46813030.548.6803.3

5761602550.9793.8
10SH-1336010028145035.755803299420
250S244861352437.9863.8

5761602039.2824.2
10SH-13A3429522.2145025.837803275420
250S24A41411520.327.6833.3

48213417.428.6803.8
10SH-1936010017.5145021.430803.3245405
250S144861351421.8854

5761601122.1784.5
10SH-19A3208913.7145015.422783226405
250S14A4321201115.8823.7

5041408.615.8754.1











型号流量Q扬程M转速n功率 N(Kw)效率必须汽蚀余量叶轮泵质量
(转/分)η(m)直径kg
m 3 /HL/s
轴功率电机功率(    %)
mm
12SH-6590164981450213300743.6540857
300S9079222090245804.3

93626082279754.9
12SH-6A576160861450190260713.5510857
300S90A75521078217744.2

91825570246714.7
12SH-6B540150721450151250703.4475957
300S90B72020067180734

90025057200704.6
12SH-9576160651450128180803.8425773
300S5879222058149844.8

97227050168795.2
12SH-9A53014755145099.2155803.6402773
300S58A72020049116834.5

89324842131785
12SH-9B50414047.2145082.5135793.5382773
300S58B6841904397.7824.2

83523237108784.8
12SH-1361217038145076.290834.2352709
300S3279222032.279.8875.2

90025025.578.1806
12SH-13A55015331145058.175804.1322709
300S32A7202002660.7845

81022520.558785.3
12SH-1961217023145047.355814.6290478
300S1979222019.449.8845.6

9352601447.6756.4
12SH-19A50414020145034.845794260478
300S19A7202001638.3825.3

90025011.537.6756.1
12SH-2861117014.5145030.337805251471
300S127922201231.2836

9002851033.1746.8
12SH-28A52214511.8145022.430754.5222471
300S12A6851901023.3805.5

7922208.724.4776.2
14SH-68502361401450450680724.56551580
350S1251250347125525815.8

1663461100620736.7
14SH-6A8002231251450391630704.46201580
350S125A1180328112462785.1

157043690550706.5
14SH-6B7452071081450313500704.15751580
350S125B110030596373775.1

14604057742272.56.4
14SH-9972270801450268400793.55001200
350S7512603507530684

14404006531980
14SH-9A900250701450220300783.54651200
350S75A11703256524784

13303705625779
14SH-9B828230591450175260753.54281200
350S75B10803005520579

122434047.520677











型号流量 Q总扬程转速功率 N(Kw)效率必须汽蚀余量叶轮泵质量
HNη(m)直径Kg
m 3 /HL/s(m)(r/min)轴功率电机功率(    %)
mm
14SH-139722705014701642308164101105
350S44126035043.817986.27

148041037188797.5
14SH-13A86424041147012119080563801105
350S44A112031036130846.5

133037030136807
14SH-1997127032145099.713283.26350828
350S2612603502610211086.27.2

14404002295.7
50.28
14SH-19A86424026145076.590805.5326878
350S26A112031021.577856.8

129636016.580737.5
14SH-2897127020145064.475726.2289760
350S16126035016.265.3857.8

144040013.470758.2
14SH-28A86424016145050.255756265760
350S16A104429013.447.6806.8

12603501048.3717.8
20SH-61656460105970615.48507748604324
500S98201656098.468079.5

244868085716.174.5
20SH-9A1548430669703405208246822747
500S59A20165605939083

24486085043377
20SH-9B1764490429702733107446002735
500S59B17644904227374

17644904227374
20SH-13165646040970215280844.75502420
500S35202056035.122187.25.6

241267030247806.1
20SH-13A1440400349701862208555102420
500S35A18705203118685

20166202618685

18705203118685

18705203118685











型号流量 Q总扬程转速功率 N(Kw)效率必须汽蚀余量叶轮泵质量
HNη(m)直径Kg
m 3 /HL/s(m)(r/min)轴功率电机功率(    %)
Mm
20SH-19151242027970134190834.44652010
500S22202056022138.887.25.8

235865016137.1756
20SH-19A1296360239701111357344272000
500S22A187052017108805.3

201656014101765.8
20SH-28165646015.297083.6115825.23902000
500S1320205601384.2856

235865510.784.8816.6
24SH-9342095071970727780911.37654300
600S75
24SH-9A316888061970585680902.57104300
600S75A
24SH-13250269556970460550832..56303200
600S47316888047.446588

34999723842680
24SH-19252070037970295380862.55402550
600S3231688803231089

396011002227985
24SH-19A230454031.5970235280842.55002550
600S32A28808002723889

360010002023185
24SH-28252070025.2970187220802.54502550
600S2228808002219584.5

34209501820781
24SH-28A243065017.5970145190772.54152550
600S22A288080015.514882

34209501315478.5
型号流量 Q总扬程转速功率 N(Kw)效率必须汽蚀余量叶轮泵质量
HNη(m)直径Kg
m 3 /HL/s(m)(r/min)轴功率电机功率(    %)
Mm
28SA-103715103299.598011571250879.54152500
28SH-104700130690125292
700S904898136087101889.5
28SA-10A342095284.598092912508588405800
28SH-10A4336120476.5100590
700S90A4517125574101889.5
28SA-10J2111586.457.57425017105257755800
28SH-10JA360010005255572
700S90JA4248118043.559579
28SA-10JA2400667517423975608458505800
28SH-10JB30008334743189
700S90JB3744104039.547488.5
32SH-94400122282740112815008787805800
800S765500152876125091

6600172268138488
32SH-9A41601156757429761400867.59008000
800S76A5200146469108586

6200172263122287
32SH-10468013008474212161600888.58808000
6330175875140592
7200200067.5147890
32SH-10A4470124276.560010601400887.59908300
5760160070119492
6878191061.5129689
32SH-10J39601100507307021000776.59508300
5070140847.578584
621017254486287
32SA-19E4700130535730575630786.59908300
32SH-195500153032.558084
800S326010167028.956783.5

6460179525.456780.5
32SA-194550126031750492560786.57405100
32SH-19A531014752950084
800S32A5800160026.549683.5

625017352348780.5
32SA-19A4170105029600391450796.57155100
32SH-19B500013882639384
800S32B5450151823.541581
40SH-866001933526001222125084669510000
1000S468250229246117488

990027503799780
40SH-8A6000166647500936125080667010000
1000S46A7800216741.5101387

900027223299279
1200S397200200042.55001023160081.55.5

90002500391092.487.5
10800300033115584
1200S39A6480180038.55008491250805.5

8100225035892.586.5
972027002992583
1200S39B58321620345006751000805.5

729020253171885.7
8748243025.574182
1200S859360260095.7745290334508411113016000
1224034008531479012
1440040007032288512.4

型号流量 Q总扬程转速功率 N(Kw)效率必须汽蚀余量叶轮泵质量
HNη(m)直径Kg
m 3 /HL/s(m)(r/min)轴功率电机功率(    %)
Mm
120S568640240060.560017632240827.578016000
10800300056187188
12960360047.5196086
120S56A7776216054.560014252000817.576015500
9720270050151388
11664324042159784
1200S3286402400356009921400837.562013000
10800300032108287
12960360026107385.5
1200S32A7776216032.56008341250837.560013000
972027002988287
1166432402388083
1200S227920224026500644800865.558512500
961226702266287
1080030001863883
1200S22A7200200023500534710855.556012500
9000272220.557386.5
10080280017.558582.5
